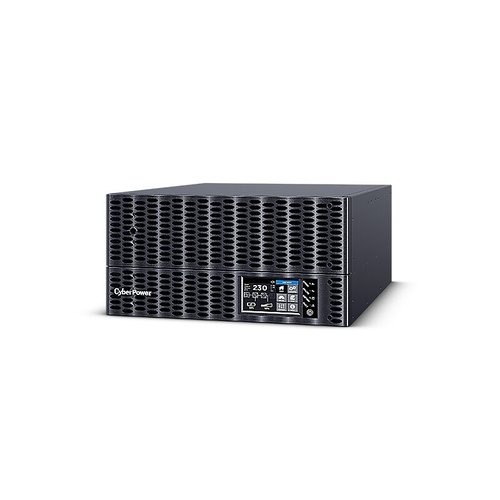

CP 40KVA/40KW Rack UPS

SKU: CPOL3T040KERTHD | Out of Stock

$6369.00 inc. GST

Australia-wide
delivery available

Manufacturer
warranty included

Need a bulk order or custom configuration? Get a quote or call 0416 295 964.

Description
Specifications

CP 40KVA/40KW Rack UPS

Key Features:

Specifications:

Phase: Three Phase
Form Factor: Rackmount, Tower
UPS Topology: Online Double Conversion
Energy Saving Technology: Online ECO Mode Efficiency > 98.9%
Normal Mode Efficiency ( % ): 95.8%
Battery Mode Efficiency ( % ): 95.5%
Active PFC Compatibility: Yes
Parallel Expansion (Max. Units): 4
Dual Power Inputs: Yes
Generator Compatibility: Yes
Nominal Input Voltage ( Vac ): Line to Neutral (L-N):220, 230, 240 Vac, Line to Line (L-L):380, 400, 415 Vac
Input Voltage Range ( Vac ): Line to Neutral (L-N): 132 ~ 276 Vac, Line to Line (L-L): 228 ~ 478 Vac
Input Frequency Range ( Hz ): 40 ~ 70
Rated Input Current ( A ): 64.5
Input Power Factor: 0.99
Overload Protection (Bypass): 125% Load for continuous operation, 150% Load for 10 min, 1000% Load for 5 ms
Input Connector Type: Hardwire Terminal Block
Capacity (VA): 40000
Capacity (Watts): 40000
On Battery Waveform: Pure Sine Wave
Output Voltage Setting: Configurable
Output Frequency Setting: Configurable
Rated Output Voltage ( Vac ): Line to Neutral (L-N):220, 230, 240 Vac, Line to Line (L-L):380, 400, 415 Vac
Output Voltage Tolerance ( % ): Balance Load: 1 %
Output Frequency ( Hz ± % ): 50 ± 0.2, 60 ± 0.166
Power Factor: 1
ECO Mode Voltage Tolerance: ± 5 %
Overload Protection: Internal Current Limiting, Fuse
Overload Protection (Line Mode): 102~110% Load for 60 min, 110~125% Load for 10 min, 125~150% Load for 1 min, >150% Load for 200 ms
Overload Protection (Battery Mode): 102~110% Load for 60 min, 110~125% Load for 10 min, 125~150% Load for 1 min, >150% Load for 200 ms
Crest Factor: 3 : 1
Harmonic Distortion (Linear Load): THD 1%
Harmonic Distortion (Non-linear Load): THD 3%
Internal Bypass: Automatic Bypass
Synchronization Window (Nominal) ( Hz ): ± 4
Outlet Type: Hardwire Terminal Block x 1
Typical Transfer Time ( ms ): 0
Maximum Charging Current ( A ): 12
Typical Charging Current ( A ): 3.6
Compatible Battery Types: VRLA
Recharge Power Setting: Configurable
Charger Voltage Tolerance ( % ): 1 %
Start On Battery: Yes
Smart Battery Management (SBM): Yes
Compatible Extended Battery Module (EBM): BME480V55ART5U
External Battery Quantity: 12V x 40pcs
EMI/RFI Filtration: Yes
LCD Panel: Yes
LCD Types: Color LCD, LCD Touch Panel
LCD Orientation: Rotatable LCD Manual
LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log
LCD Setting & Control: Mode Setting, Input & Output, Battery Setting, Communication, Event & Log, Security Setting, Language
LED Indicators: Yes
Shortcut Button: Alarm On/Off
Serial Port: RS232 x 1 + RS485 x 1 + Dry Contact x1
Dry Contact (with Relay): Yes
Emergency Power Off (EPO) Port: Yes
Audible Alarms: Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery
Power Management Software: PowerPanel Business (Recommended)
SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205
Compatible with Racks (3 Phase): Yes
Enclosure Construction: Metal
Color: Black
Ingress Protection: IP20
Rackmount Rail: Yes
Dimensions (mm.): 433 x 219 x 730
Weight (kg.): 42.8
Installed Rack Height ( U ): 5
Operating Temperature (°C): 0 ~ 40
Operating Relative Humidity (Non-condensing) ( % ): 0 ~ 95
Operating Elevation (meters): 0-3,000
Storage Temperature (°C): -40 ~ 70
Storage Relative Humidity (Non-condensing) ( % ): 0 ~ 95
Audible Noise at 1.0M from Surface of Unit: 66dBA(100% load), 56dBA(50% load)
