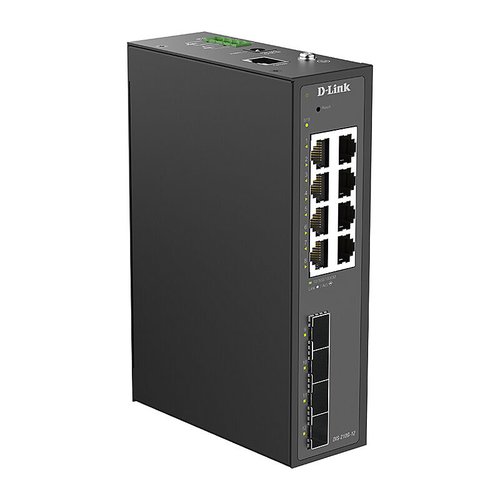

12-Port Gigabit Industrial Smart Managed Switch with 8 1000BASE-T ports and 4 SFP ports.
Key Features:
Features
- 4 x 1G SFP ports for aggregated throughput
- 8 x Gigabit ports for fast data transmission
- Dual power inputs provide power redundancy
- Wide voltage compatible with various power sources
- -40°C to 75°C operation for harsh environments
- 6kV surge protection on Gigabit Ethernet ports
- Fanless and IP40-rated design enhances reliability
- Support Ethernet Ring Protection Switching (ERPS)
- Support L2 management and IP static routing
- Proactive OAM by Y.1731, 802.1ag, 802.3ah
Specifications
- Category: Smart Industrial Switches
- Fanless: Yes
- Installation: DIN-Rail
- Operating Temperature: -40°-75°C
- Surge Protection: 6kV
- 802.3az EEE: Yes
- Jumbo Frame: 9K
- Ingress Protection: IP40
- Power Supply Type: DC:12~55V Dual input
- MAC Address: Up to 8K
- 802.1D STP, 802.1w RSTP, 802.1s MSTP: Yes
- Ethernet ring protection switching (ERPS): Yes
- Port/VLAN Basis GVRP: Yes
- 802.1X, RADIUS: Yes
- LLDP, LLDP-MED: Yes
- ICMPv6: Yes
- OAM by 802.3ah, 802.1ag, ITU-T Y.1731: Yes
- Command Line Interface (CLI): Yes
- Console Port: RJ-45 console port
Technical Specifications
- Brand
- D-Link
- Manufacturer Code
- DIS-210G-12
