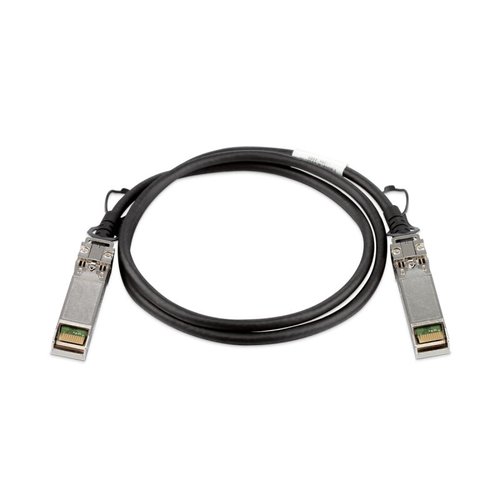

The 10G Passive SFP+ Twinaxial Direct Attach Cable is designed to support connections1 for 10Gbps Gigabit Ethernet or Gigabit Ethernet switches with 10Gbps Gigabit Ethernet uplink
Key Features:
Specifications:
- Length: 1 m
- Device Rate: 10 Gbps Gigabit Ethernet
- Connector Type: SFP+ Cable Assembly
- Wire AWG: 30 AWG
- VMA Loss to Crosstalk Ratio (VCR): Min.: 32.5 dB
- Minimum Cable Bend Radius: 23.5 mm (0.93 inches)
- Cable Characteristic Impedance: 100 Ohms
- Voltage: 30 V AC
- Current: 0.5 A
- Temperature Operating: -40 to 85 °C (-40 to 185 °F)
- Certifications: SFP MSA (Multi-Source Agreement), SFF-8431, EIA 364, UL 94
Features:
- SFP+ (Enhanced Small Form-factor Pluggable)
- Ideal for High-Bandwidth Operations
- High speeds and lower latency result in faster transmissions than other types of cables
- Cost-effective Solution
- Energy Efficiency
Technical Specifications
- Brand
- D-Link
- Manufacturer Code
- DEM-CB100S
- EAN
- 790069365102
