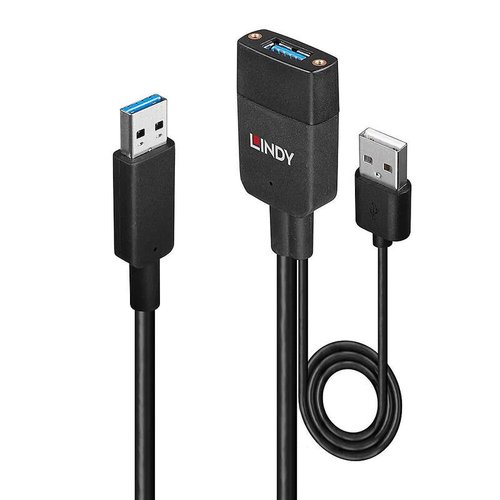

Lindy 35m USB Hybrid Cable

Lindy 35m Hybrid USB 3.2 Gen 2 Cable Type A

Key Features:

Features

• 35m Hybrid USB 3.2 Gen 2 Cable combines the benefits of a copper and fibre optic cable
• Supports transfer rates up to 10Gbps
• USB Type A connection to computer and device
• Low RFI/EMI for sensitive environments
• 2 year warranty

Specifications

Connectors

• Connector A: USB Type A Male
• Connector B: USB Type A Female
• Power: USB Type A Male
• Housing Material: TPE
• Connector Plating: Stainless Steel C2650, Solder Nickel
• Pin Construction: Copper Alloy, Mating Area AU
• Pin Plating: Mating Area AU 1U
• Dimensions (approx.) WxDxH:
• USB A Male: 42.85x16x8mm (1.69x0.63x0.31in)
• USB A Female: 43x28.4x7.12mm (1.69x1.12x0.28in)

Cable Construction

• Standard: USB 3.2/3.1 Gen 2
• Colour: Black
• Type: Round
• Jacket Diameter: 5.0mm (0.2in)
• Jacket Material: PVC
• Conductor Material: Tinned Copper
• Wire Conductor Gauge: 26AWG (STP), 22AWG*2 (VBUS)
• Shielding: AL

Specifications

• Supported Bandwidth: 10Gbps
• Minimum Bend Radius: 40mm (1.57in), static
• Maximum Tensile Load: 500N (short term)
• Operating Temperature: -20°C - 70°C (-4°F - 158°F)
• Storage Temperature: -40°C - 85°C (-40°F - 185°F)
• Transmission Medium: Optical Fiber
• Transmission Technology: Optoelectronic Transmission

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 240x240x65mm (9.45x9.45x2.56in)
• Net Weight: 1.35kg (2.98lb)
• Gross Weight: 1.5kg (3.31lb)
• Warranty (Years): 2
• Product Compliance: CE, FCC, RoHS & REACH, CP 65
