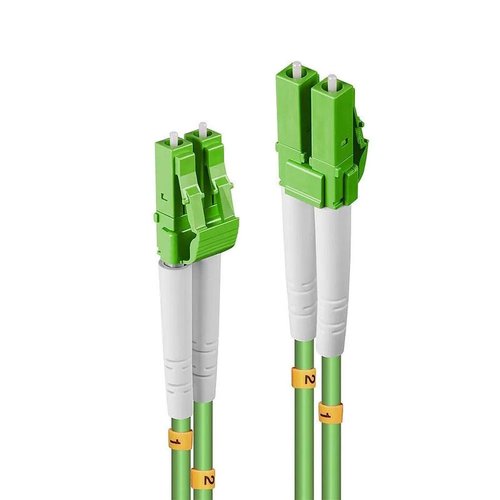

2m Fibre Optic Cable, LC-LC, 50/125?m OM5
Key Features:
Features:
2 x LC Male to 2 x LC Male
Twin Zip, Multimode 50/125µm fibre
Total immunity to electrical and electromagnetic interference (EMI)
4mm OD, LSZH cable
10 Year Warranty
Specification:
- Supported Bandwidth: 100Gbps
- Nominal Attenuation:
< 2.4db@850nm
< 1.7db@953nm
< 0.6db@1300nm
- Minimum Band Radius: 7.5mm (0.29in)
- Operating Temperature: -40°C - 85°C (-40°F - 185°F)
- Storage Temperature: -40°C - 85°C (-40°F - 176°F)
Connectors
- Connector A: LC Male
- Connector B: LC Male
- Housing Material: Plastic (PEI)
- Dimensions (approx.) WxDxH: A: 12.5x21.5x10.5mm (0.49x0.85x0.41in)
Cable Construction
- Standard: OM5
- Colour: lime green
- Type: Round
- Jacket Diameter: 4.0mm (0.16in) x 2
- Jacket Material: LSZH
- Conductor Material: Fiber
- Conductor Gauge: 50/125µm
Miscellaneous
- Packaging Type: Polybag
- Warranty (Years): 10
- Certificated: RoHS, REACH, UL
Technical Specifications
- Brand
- Lindy
- Manufacturer Code
- 46311
- EAN
- 4002888463119
