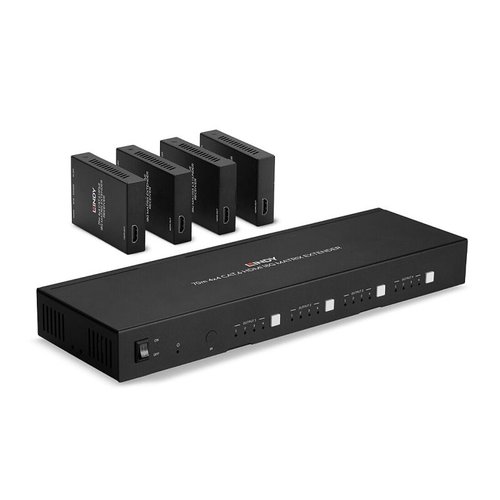

Lindy 70m CAT6 HDMI Matrix Ext

Lindy 70m CAT6 HDMI Matrix Ext

Key Features:

Specifications:

• AV Interface: HDMI
• Interface Standard: HDMI 2.0
• Supported Bandwidth: 18Gbps
• Maximum Distance: 70m
• Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
• HDCP Support: 2.2
• EDID Pass Through: EDID Management: Pre-set or Copy Functionality
• Supported Audio: HDMI Audio Pass-through
• IR Support: 20-60KHz
• CEC Support: Pass-through
• Serial Interface: RS-232
• Transmission Medium: 1 x Cat.6 each port
• Chipset: GSV
• Transmitter Input: 4 x HDMI Type A (Female)
• Transmitter Output: 4 x HDMI Type A (Female) | 4 x RJ-45 (Female) | 4 x 3.5mm IR (Female) | RJ-45 LAN Control (Female) | 3-Pin Phoenix Connector (Female)
• Receiver Input: RJ-45 (Female) | 3.5mm IR (Female)
• Receiver Output: HDMI Type A (Female)
• Power: 5.5/2.1mm
• Extender Dimensions: 320 x 100 x 36mm
• Receiver Dimensions: 61 x 88 x 18mm
• Extender Weight: 0.95kg
• Receiver Weight: 0.14kg
• Power Requirements: 12VDC 2.5A
• Warranty (Years): 2
• Certificated: CE | UKCA | FCC | RoHS | REACH

Features:

• Distribute 4K HDMI signals to up to 4 displays in multiple locations from 4 different sources
• Supports resolutions up to 4K@60Hz with additional support for HDR
• Features 4 HDMI outputs on the transmitter for local monitoring which run simultaneously with the extension output
• Supports Power over Cat.6 (PoC) to the receivers only a single power supply is required for operation
• 2-year warranty
