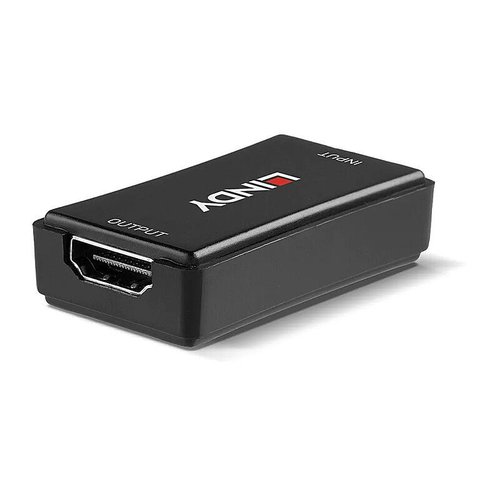

Lindy 40m HDMI2.0 18G Repeater

Lindy 40m HDMI 2.0 18G Repeater

Key Features:

Features

• Extends HDMI 2.0 18G signals over 50m
• Supports resolutions up to 3840x2160p@60Hz 4:4:4
• High Dynamic Range support for enhanced contrasts and 10-bit colour performance
• Minimalistic, compact design
• 2 year warranty

Specifications

AV Interface

• AV Interface: HDMI
• Interface Standard: HDMI 2.0
• Supported Bandwidth: 18 Gbps
• Maximum Distance:
• 40m (131.23ft) - 3840x2160@60Hz 4:2:0 8bit
• 25m (82.02ft) - 3840x2160@60Hz 4:2:0 12bit
• 20m (65.62ft) - 3840x2160@60Hz 4:4:4 8bit
• Maximum Input Distance:
• 20m (65.62ft) - 3840x2160@60Hz 4:2:0 8bit
• 15m (49.21ft) - 3840x2160@60Hz 4:2:0 12bit
• 10m (32.81ft) - 3840x2160@60Hz 4:4:4 8bit
• Maximum Output Distance:
• 20m (65.62ft) - 3840x2160@60Hz 4:2:0 8bit
• 10m (32.81ft) - 3840x2160@60Hz 4:2:0 12bit
• 10m (32.81ft) - 3840x2160@60Hz 4:4:4 8bit
• Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
• HDCP Support: Pass-through
• Transmission Medium: 2 x HDMI Cable
• Special Features: -

Connectors

• Input: HDMI (Female)
• Output: HDMI (Female)
• Power: USB Micro B (Female) (optional)

Physical Properties

• Dimensions WxHxD: 28x51x13mm (1.1x2.01x0.51in)
• Housing Material: Metal
• Net Weight: 0.022kg (0.05lb)
• Operating Temperature: 0°C - 45°C (32°F - 113°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity: 20-90% RH (non-condensing)
• Power Requirements: -
• Colour: Black

Miscellaneous

• Packaging Type: Polybag
• Packaging Dimensions: 13.5x12mm (0.53x0.47in)
• Gross Weight: 0.031kg (0.07lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS, REACH & California Proposition 65
