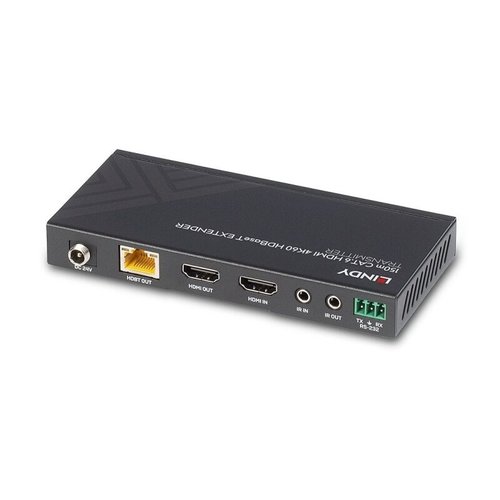

Lindy 150m CAT6 HDMI Ext

Lindy 150m CAT6 HDMI Ext

Key Features:

Specifications:

• AV Interface: HDMI Interface
• Standard: HDMI 2.0
• Supported Bandwidth: 18 Gbps
• Maximum Distance: 70m - 3840x2160@60Hz 4:4:4 8bit | 100m - 3840x2160@30Hz 4:4:4 8bit | 150m - 1280x720@60Hz
• Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
• HDCP Support: 2.2
• EDID Pass Through: Pass-through
• Supported Audio: HDMI Audio Pass-through
• IR Support: 20KHz - 60KHz
• CEC Support: Pass-through
• Serial Interface: RS-232 (Bi-directional)
• Transmission Protocol: HDBaseT
• Transmission Medium: 1 x Cat.6
• Chipset: VS010-A0
• Special Features: HDMI Loop Out Port PoC (Power over Cat.6)
• Transmitter Input: HDMI Type A (Female) | IR (Female)
• Transmitter Output: HDMI Type A (Female) | RJ-45 (Female) | IR (Female)
• Receiver Input: RJ-45 (Female)
• Receiver Output: HDMI Type A (Female) | 3.5mm (Female)
• Bi-directional Ports: RS-232 (Female)
• Power : 5.5/2.1mm
• Dimensions: 140 x 65 x 18mm
• Weight: 0.472kg Per Unit
• Power Requirements: 24VDC 1A
• Warranty (Years): 2
• Certificated: CE | UKCA | FCC | RoHS | REACH

Features:

• Distributes HDMI resolutions up to 150m over Cat.6 network cable via HDBaseT & Long Reach technology
• Supports HDMI 18G resolutions up to 4K 3840x2160@60Hz 4:4:4
• RS-232 CEC pass-through and bi-directional IR for simple control
• Supports PoC (Power over cable) requiring a power supply connection from only one side of the installation
• 2 Year Warranty
