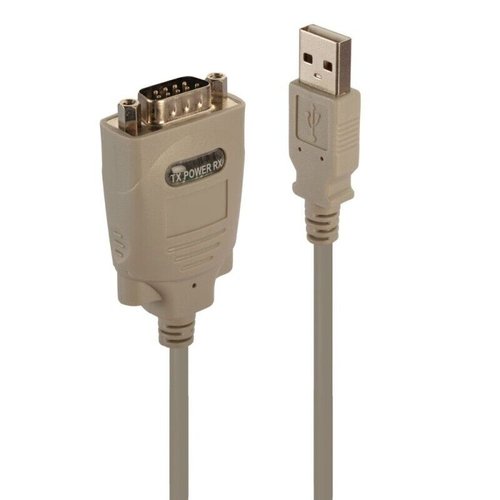

With both USB Type A and serial connectors, this device is a perfect solution for connecting legacy RS422 equipment such as barcode scanners and industrial devices to notebooks and Macbooks, in retail, IT and digital signage scenarios.
Key Features:
Specifications:
- Interface: USB to RS422 Serial
- Interface Standard: USB 1.1, RS422
- Supported Bandwidth: 12Mbps, up to 3Mbaud
- Chipset: FTDI FT231XS
- Compatibility: USB Type A-equipped computers
- Inputs: 1 x USB Type A (Male)
- Outputs: 1 x RS422 9 way (Male)
- Power: Bus-powered
- Dimensions WxDxH: 33x55x14mm / RS422, 14x39x8mm / USB
- Cable Length: 1m
- Housing Material: Plastic
- Net Weight: 0.077kg
- Operating Temperature: 0C - 50C
- Storage Temperature: -20C - 70C
- Humidity: 0 - 80% RH (non-condensing)
- Colour: Grey
- Packaging Type: Polybag
- Gross Weight: 0.152kg
- Warranty: 2
- Certificated: CE, FCC, RoHS & REACH
Features:
- Connects to any serial RS422 device via USB Type A
- 9 Way D Male to USB A Male connectors
- Plug & Play - USB bus-powered with no external power supply required
- Compatible with Windows, Mac and Linux operating systems
- 2-year warranty
Technical Specifications
- Brand
- Lindy
- Manufacturer Code
- 42844
- EAN
- 4002888428446
- Input Port
- USB-A
- Output Port
- DB9
