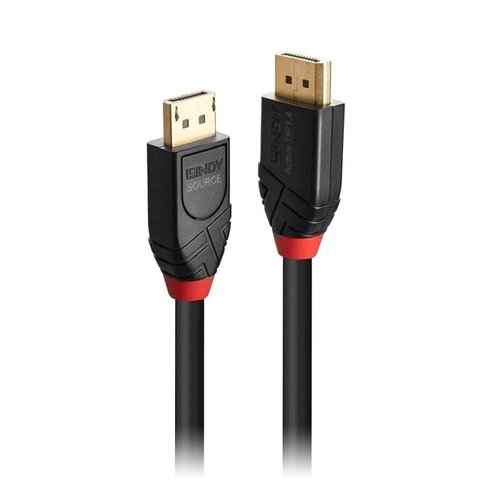

Active DisplayPort cables use integrated electronics in the form of 'chipsets' to amplify signals enabling them to be sent further than their standard distance.
Key Features:
Specifications:
- Connector A: DisplayPort (Male)
- Connector B: DisplayPort (Male)
- Housing Material: ABS
- Connector Plating: Gold Plated
- Pin Construction: Copper Alloy
- Pin Plating: Gold Plated
- Dimensions: Connector Dimensions: 20.7x42.6x13mm
- Length: 7.5m
- Standard: DisplayPort 1.4
- Colour: Black
- Type: Round
- Jacket Diameter: 7mm
- Jacket Material: PVC
- Conductor Material: Bare Copper
- Conductor Gauge: 28AWG
- Shielding: Aluminium Magnesium braid, 85%
- Supported Bandwidth: 32.4Gbps
- Maximum Resolution: 7680x4320@60Hz 4:2:0 10bit, 4096x2160@144Hz 4:2:2 10bit
- Minimum Bend Radius: 70mm
- Operating Temperature: -10C - 80C
- Storage Temperature: -20C - 85C
- Warranty: 2-year
- Certificated: CE, FCC, RoHS, REACH & California Proposition 65
Features:
- Creates a long-distance connection between a DisplayPort source device and a display
- Supports high-quality resolutions up to 4K@144Hz
- High Dynamic Range support for enhanced colour, brightness and contrasts
- In-built active chipset for reliable length DisplayPort transmission
- 2-year warranty
Technical Specifications
- Brand
- Lindy
- Manufacturer Code
- 41168
- EAN
- 4002888411684
- Cable Length
- 5-10 Metre
- Cable Type
- DisplayPort
- Cable Output
- DisplayPort
