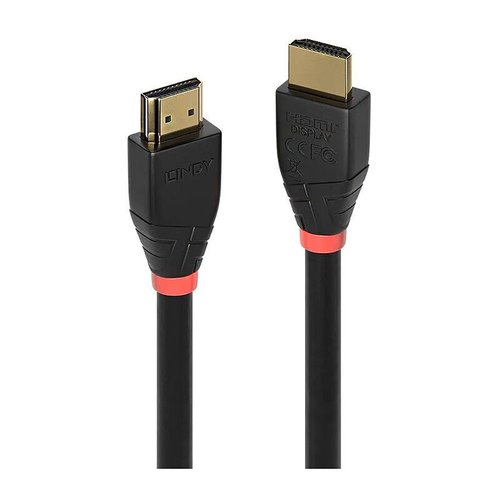

Lindy 20m Active HDMI 4K60 Cbl

Lindy 20m Active HDMI 4K60 Cable creates a long distance HDMI connection between a 4K source device and display

Key Features:

Features

• Creates a long distance HDMI connection between a 4K source device and display
• Delivers reliable 4K@60Hz resolutions over longer cable distances
• Active HDMI technology built into the connector for flexible installation
• Full support for HEC, ARC and CEC compliant devices
• 2 year warranty

Specifications

Connectors

• Connector A: HDMI Type A Male
• Connector B: HDMI Type A Male
• Housing Material: ABS
• Connector Plating: 24K Gold Flash
• Pin Construction: Phosphor Bronze
• Pin Plating: 24K Gold 3um
• Dimensions WxDxH (approx.): 21.68x43x13.22mm (0.85x1.69x0.52in)

Cable Construction

• Standard: HDMI 2.0
• Colour: Black
• Type: Round
• Jacket Diameter: 8.6mm (0.34in)
• Jacket Material: PVC
• Conductor Material: Bare Copper
• Conductor Gauge: 28AWG
• Shielding: Aluminium Foil Mylar, 100% / Aluminium Alloy Braiding, 70%

Specifications

• Supported Bandwidth: 18Gbps
• Maximum Resolution: 4096x2160@60Hz 4:4:4 8bit
• Nominal Attenuation: 300KHz~825MHz 5dB, 2.475GHz~4.125GHz 12dB~20dB
• Minimum Bend Radius: 100mm (3.94in)
• Operating Temperature: -20°C - 80°C (-4°F - 176°F)
• Storage Temperature: -10°C - 60°C (14°F - 140°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 2 Years
• Certificated: CE, FCC, RoHS, REACH & UL
